Začínáme se Solid Edge: Modelování jednoduché klikové hřídele #2

V prvním díle jsme si ukázali postup, jak vymodelovat klikovou hřídel a vložit kosmetický závit. V navazujícím návodu si ukážeme, jak konstrukci dokončit.

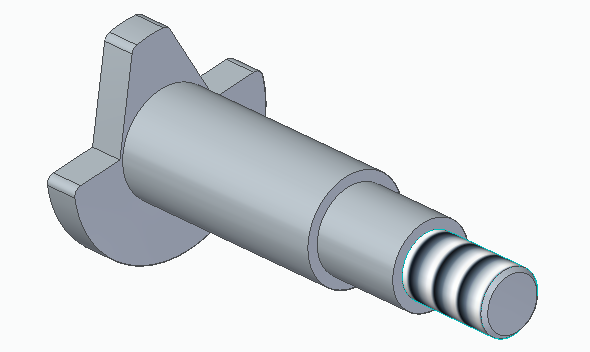

Otevřete si soubor s názvem Klikova_hridel_1.par. Pokud tento soubor nemáte, postupujte podle prvního dílu tohoto návodu

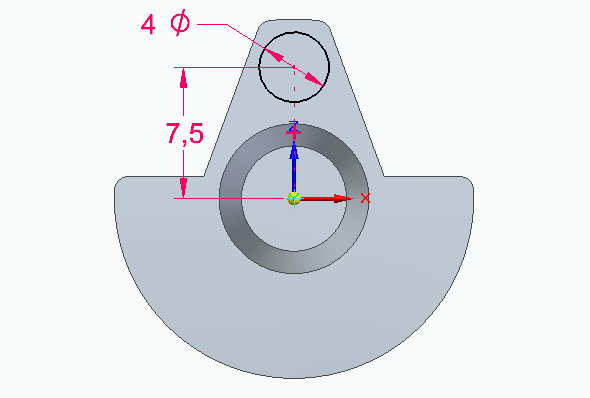

Na čele hřídele vytvořte kružnici o velikosti 4 mm jejíž vzdálenost leží 7,5 mm od počátku souřadného systému

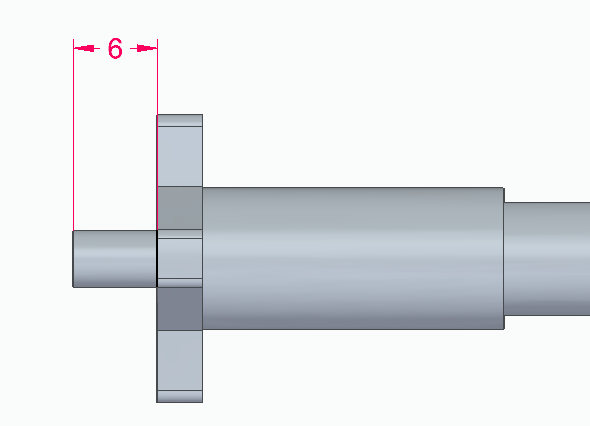

Skicu vysuňte do vzdálenosti 6 mm

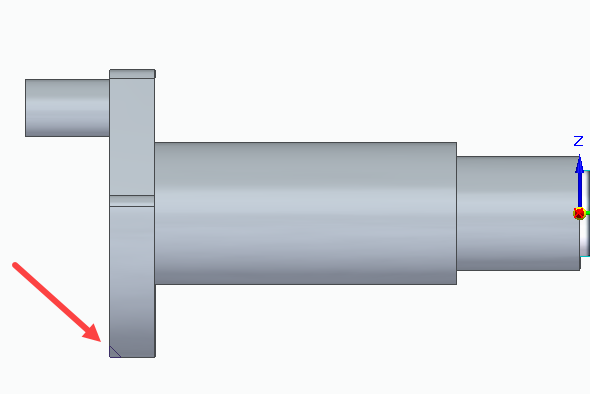

Vytvořte skicu na pravém bokorysu (YZ) a přibližte si oblast označenou šipkou

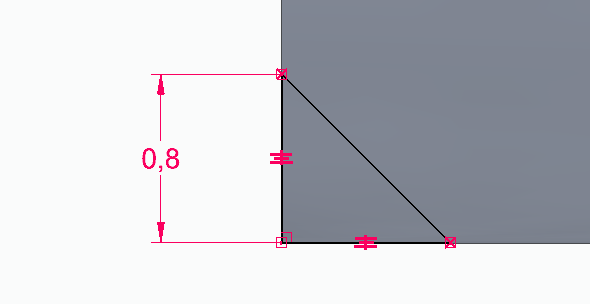

Nakreslete trojúhelník s délkou a zakótujte stranu o velikosti 0,8 mm. Pro ostatní rozměry trojúhelníku použijte vazbu Shodně. Konstrukční čárou nakreslete čáru v ose rotace hřídele a skicu zavřete

Zvolte funkci Vyříznutí rotací a v plovoucím okně zvolte Vybrat ze skici. Klikněte na skicu a potvrďte pravým tlačítkem. Klikněte na osu a potvrďte výběr zeleným tlačítkem. V plovoucím okně nastavte Vyříznutí rotací – Symetricky a zadejte hodnotu úhlu 200°

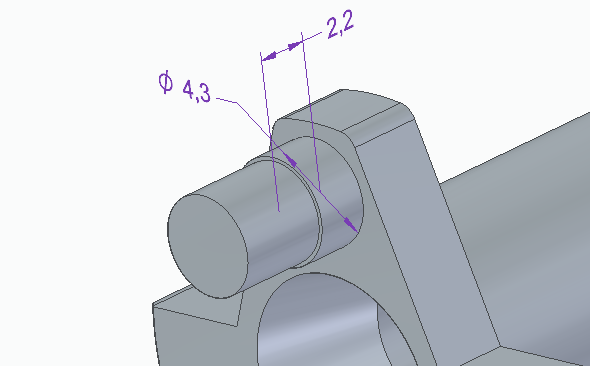

Podle obrázku vytvořte skicu a na ní kružnici o velikosti 4,3 mm, kterou vysuňte do vzdálenosti 2,2 mm

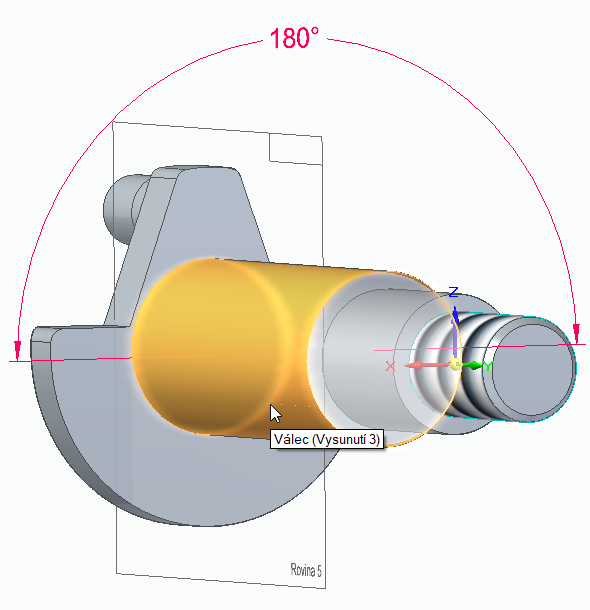

Ze záložky Domů Roviny vyberte funkci Tečně a vytvořte novou rovinu tečnou k ploše válce tak, jak je uvedeno na obrázku – s úhlem 180 °

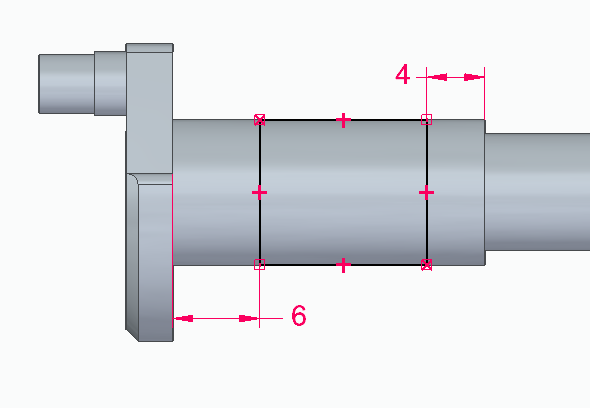

V této rovině vytvořte skicu a do ní nakreslete Obdélník dvěma body a zakótujte rozměry podle obrázku

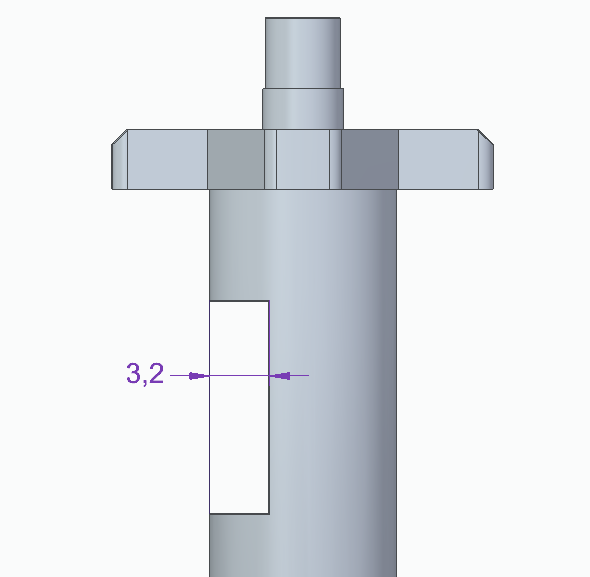

Funkcí Vyříznout udělejte otvor do hloubky 3,2 mm

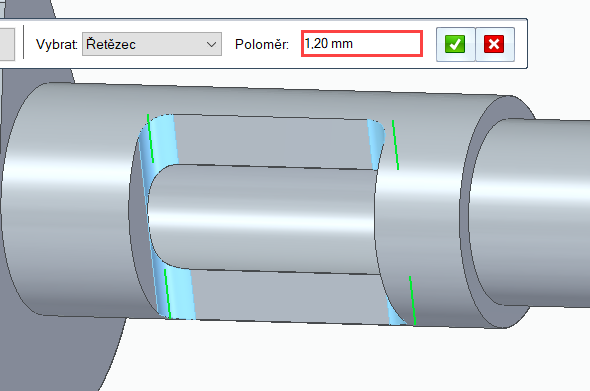

Zaoblete zvýrazněné hrany poloměr 1,2 mm

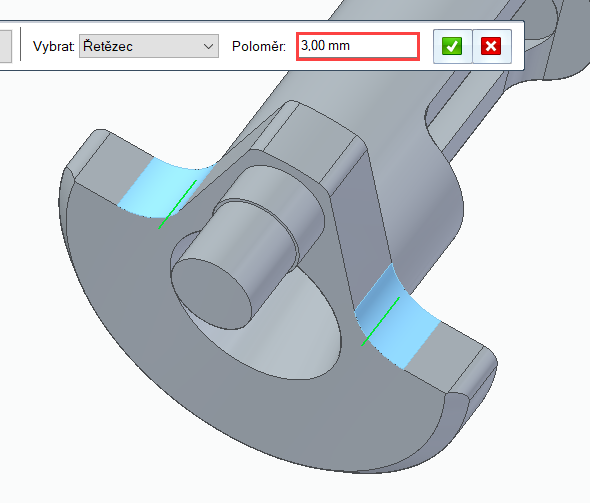

K dokončení celé hřídele zbývají zaoblit poslední dvě hrany. Proveďte zaoblení o poloměru 3 mm

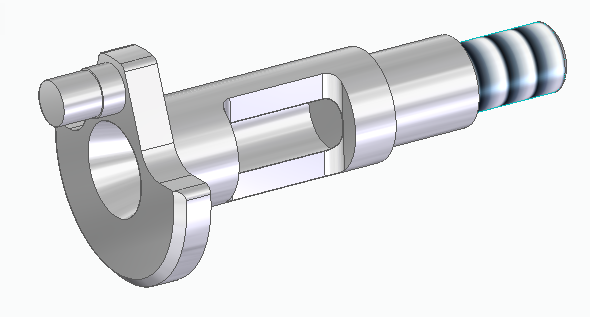

Definujte materiál hliník a soubor si uložte pod názvem Klikova_hridel_fin.par
