Reportáž: Jaké novinky přinese Solid Edge ST10

V kongresovém hotelu Tři hvězdičky u Jihlavy se 21. března 2018 uskutečnil seminář Novinky v Solid Edge ST10, který pořádala společnost TPV group. Jak již název napovídá, hlavním tématem byla diskuze o novinkách v CAD modeláři Solid Edge od verze ST4 až po aktuální verzi ST10. Setkání uživatelů bylo zpestřeno o duel mezi dvěma techniky, kteří porovnali výhody modelování pomocí sekvenční a synchronní technologie. Pojďme se podívat, co se na semináři dělo.

Úvodní přednášky se ujali zástupci firmy TPV group, která je partnerem a dodavatelem softwaru firmy Siemens PLM Software. V následujícím příspěvku Jaroslava Haltmara, který zastupuje firmu Siemens, zazněly vize o propojení digitálního a reálného světa v konceptu Industry 4.0. Na závěr předal diplom „Partner roku 2017“ společnosti TPV group a přivítal dalšího řečníka Vladislava Pokorného, který zahájil prezentaci o novinkách v ST10.

Jaroslav Haltmar předal zástupci společnosti TPV group diplom „Partner roku 2017″

Novinky lze rozdělit do několika okruhů:



Vylepšení součástí a plechů:

  • Modelování více těles v jedné součásti – umožňuje rychlejší návrh projektů a dokonalejší práci s importovanými sestavami (odstraněn problém s nulovou tloušťkou)
  • Vyříznutí, Vyříznutí rotací, Díra – tyto příkazy lze nyní použít pro několik součástí najednou (převážně usnadňuje práci v prostředí plechů)
  • Drážka – jedná se o nový příkaz, který umožňuje nakreslit pouze osu drážky, což se příznivě projeví při vazbení šroubu v sestavě
  • Vylepšení tabulky proměnných – je možno vytvářet podmínky a třídit dle operací to přispívá k lepší orientaci v tabulce
  • Otisk – nový příkaz díky, kterému vznikne rozdílem dvou těles prolis, výhoda oproti tradičnímu příkazu Prolis spočívá v možnosti přechodu do 3D prostoru a vytvoření komplikovaných tvarů
  • Nový příkaz pro převod na plechovou součást – výhoda je vhodná pro násypky, kde se vyskytují úhly



Vylepšení sestav:

  • Automatické nahrazování chybějících souborů a dohledání chybějících sestav
  • Přibyli nově vazby v sestavě – Pevný blok, Trajektorie, Správce vazeb (užitečná funkce, která vypíše všechny vazby v sestavě)
  • Nový režim velkých sestav
  • Vylepšené nahrazování součástí za jiné
  • Rámové konstrukce je nyní možno ořezávat dle těles
  • Klonování komponent
  • Nové prostředí pro renderování a vizualizace komponent – aplikace KeyShot



Vylepšení výkresů:

  • Nově hned po vložení komponenty se ukáže daný pohled na výkrese – je odstraněn průvodce přidání pohledu
  • Nová tabulka tolerancí
  • Asociativní přerušení pohledů – jednotlivé přerušení pohledu lze přenést na jiný pohled
  • Přímé upravování tabulek

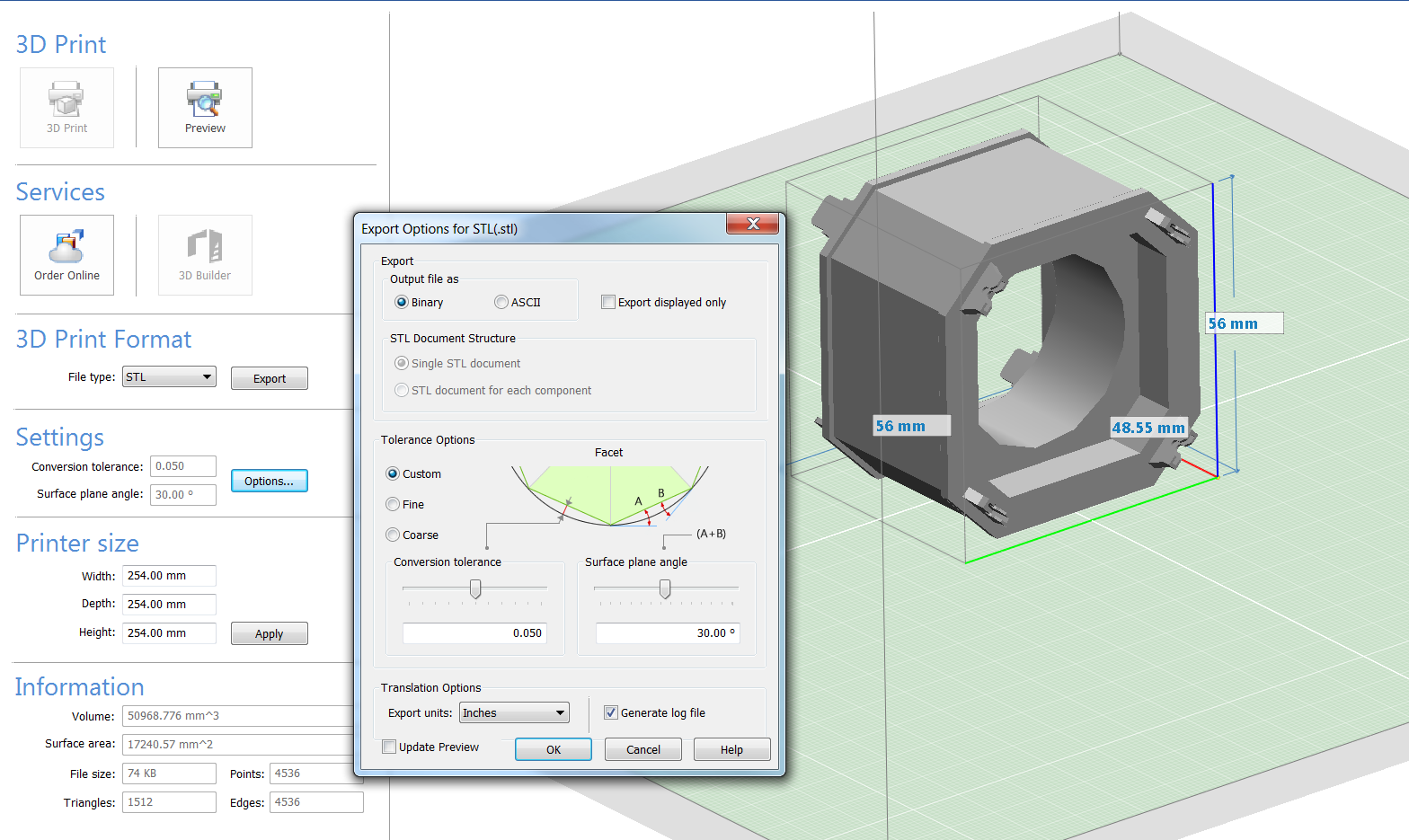

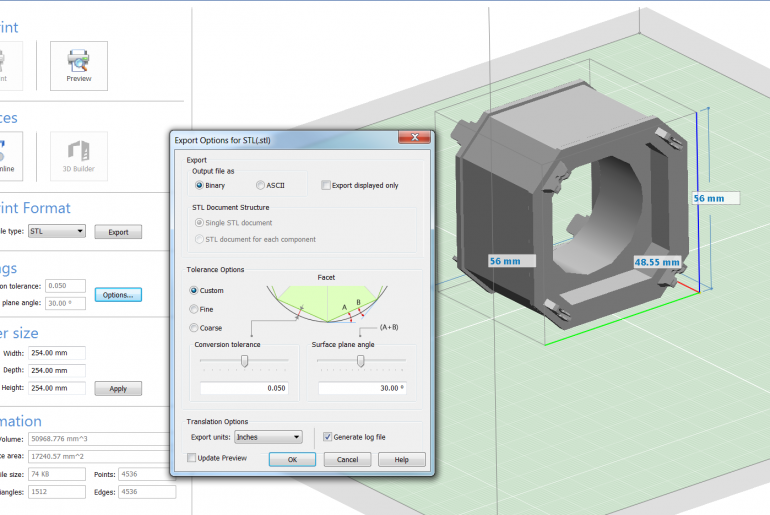

Podpora 3D tisku:

  • Nová záložka v tlačítku menu
  • Interaktivní náhled součásti – ihned vidíte informaci s rozměry součásti a zda se součást vleze do stavební komory oblast
  • Snazší export do formátů STL a 3MF
  • Službu 3D tisku lze přímo objednat u sjednaných partnerů z modeláře Solid Edge



Generativní návrh:

  • Jedna z největších novinek v ST10
  • Optimalizace součásti v závislosti na zatížení
  • Návrh na minimalizaci materiálu
  • Vizualizace napětí součástí



Reverzní inženýrství:

  • Umožňuje nahradit plochy facetového modelu, plochami konstrukčními a s nimi dále pracovat
  • Nahrazení ploch, lze je ořezat a sešít

Po uvedení a názorného předvedení novinek od verze ST4 po ST10 následovala ukázka importování souborů z jiných modelářů, třetích stran a poté proběhl již zmíněný duel v modelování pomocí dvou technologií.

Duel sekvenční a synchronní technologie

Závěrečná přednáška patřila Ondřejovi Čermákovi, který představil službu Teamcenter. Síla této služby spočívá v cloudové správě dokumentace, propojení komunikace mezi vývojářem, konstruktérem a technikem a mnohé další funkce. Součástí přednášky byla i praktická ukázka podniku ve které je tento systém úspěšně zaveden.
